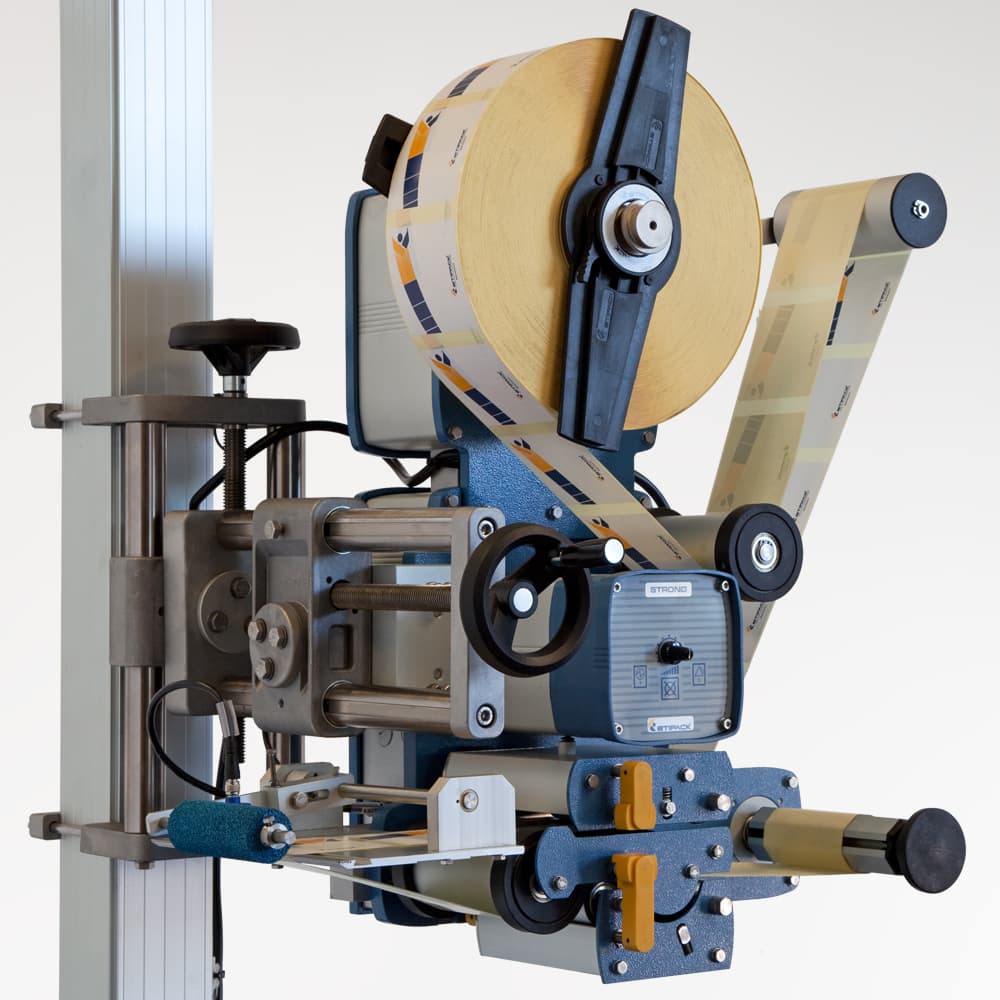

Strong Series
(4.8)
SKU: N/AThe labelling machine Strong is the entry-level model of the range of label applicators manufactured by Etipack. It is a compact, robust, reliable and price saving label applicator to cover a wide range of industrial labelling needs. The Strong automatic labeller is available in 2 widths, 100 or 200 mm Unwinder with disc brake Belt rewinder Rewinder for plastic supports Membrane keyboard for main functions End of coil control and / or jamming Label step control Pre-alarm end coil
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Caratteristiche | 100 | 200 |
|---|---|---|
| Velocità | ≤ 30 m/min | ≤ 20 m/min |
| Larg.Distribuzione | 20 - 100 mm | 20 - 200 mm |
| Ø esterno bobina | ≤ 280 mm | ≤ 280 mm |
| Ø interno bobina | 40 - 75 mm | 40 - 75 mm |
| Motore | Passo passo | Passo passo |
| Tolleranza stop | ± 0,5 mm | ± 0,5 mm |
| Dimensioni L - La - H | 581x325x608 mm | 581x425x608 mm |
| Alimentazione | 115/230 V, 50-60 Hz | 115/230 V, 50-60 Hz |
| Assorbimento | 100 W | 100 W |
| Protezione elettrica | IP 54 | IP 54 |
| Rumorosità | 70 dB | 70 dB |
| Versione | DX - SX | DX - SX |
Related Products
Dispenser Labeling

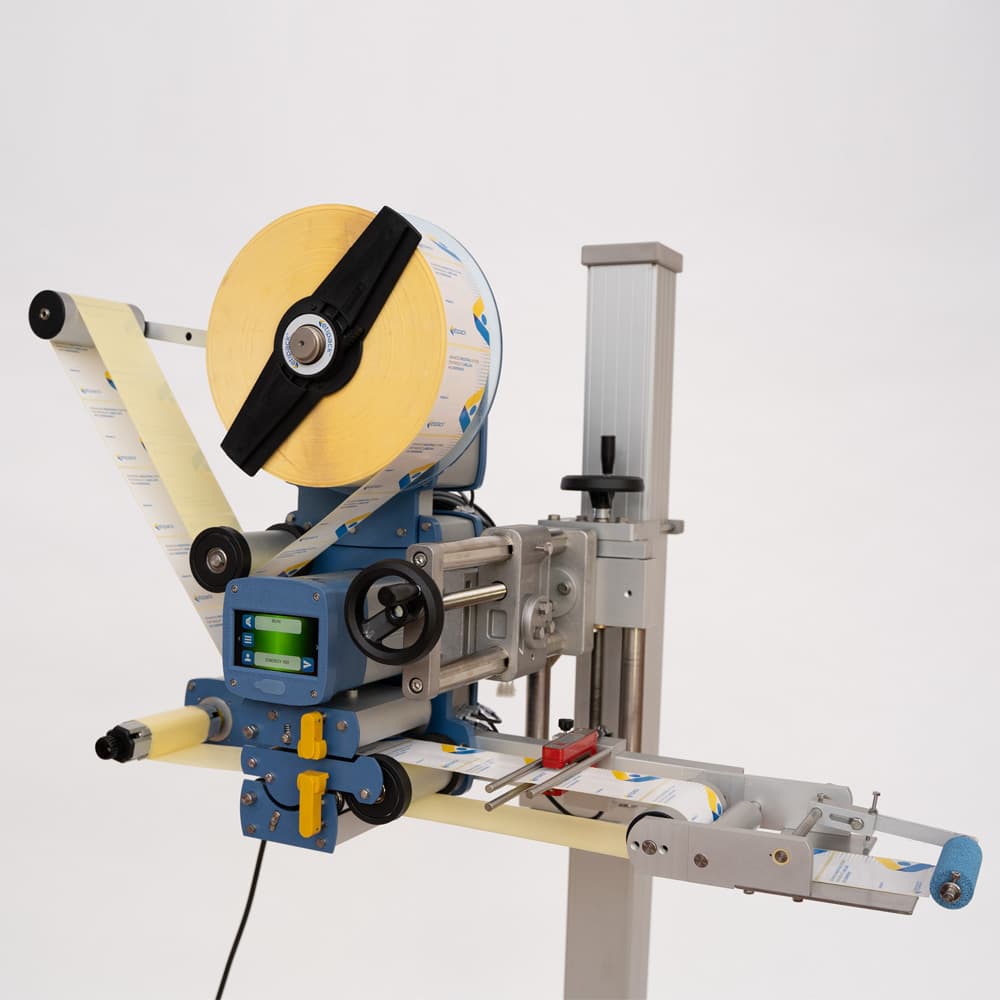

Energy Series
Automatic Labelling Machine for Pressure-Sensitive Labels Speed up to 60 m/minute Features of the label applicator Unwinder with disc brake Clutch rewinder Display for parameters setting Control on reel end and paper jam Control on label stepper Pre-alarm on reel end Hybrid stepper motor
Dispenser Labeling

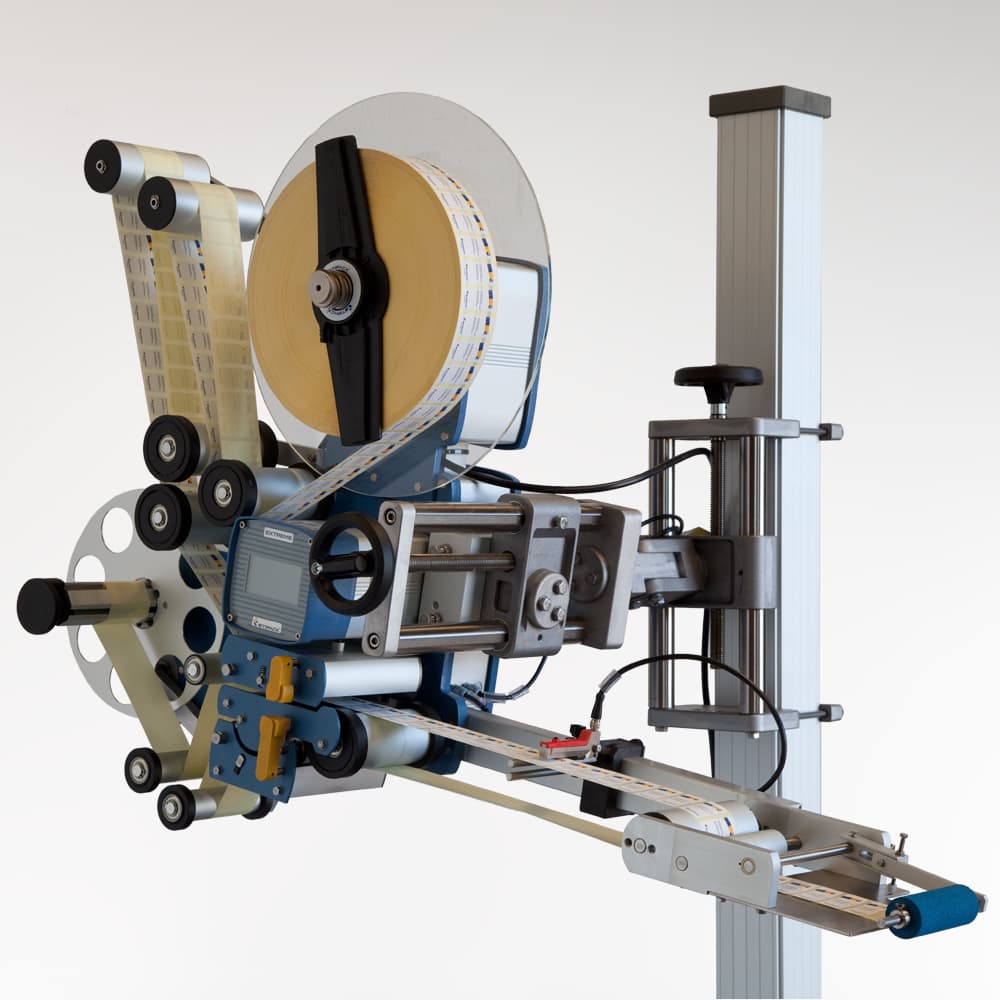

Extreme Series
