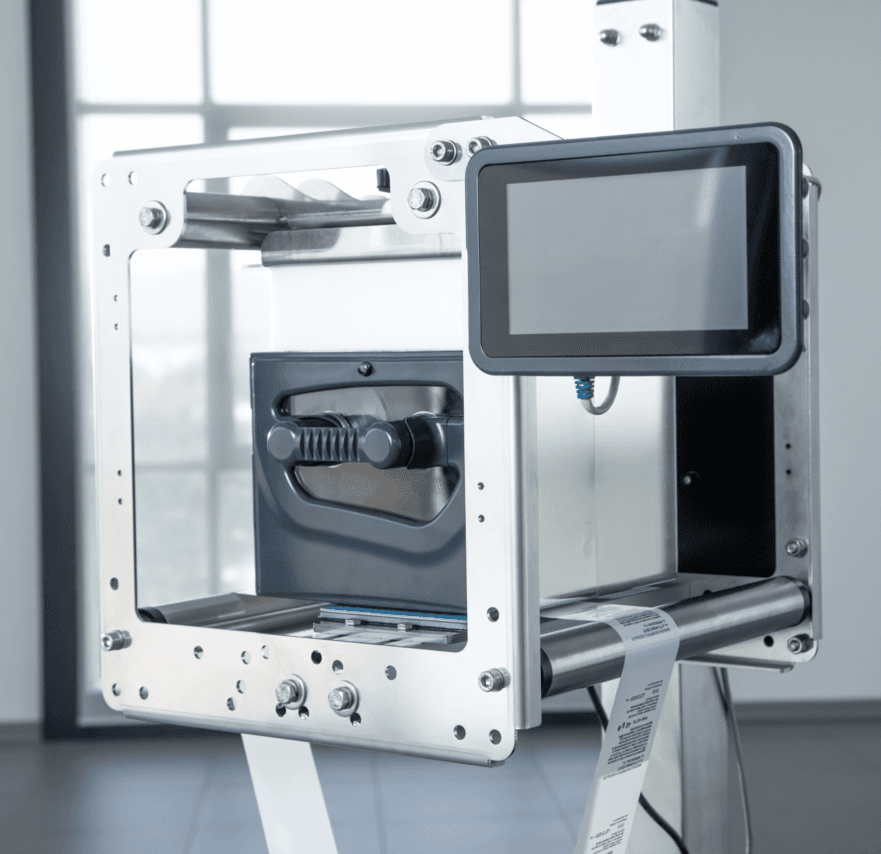

Model XTO2 IE/CE
(4.8)
SKU: N/AKey Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| SPECIFICATIONS | XTO 2” INTERMITTENT | XTO 2” CONTINUOUS | |
|---|---|---|---|
| Printing | Printing Mode | Intermittent / continuous on the same print unit | |
| Technology | Thermal transfer | ||
| Resolution | 300 dpi; 12 dots/mm | ||
| Speed |
300 mm/s (within safe operating area) Up to 1000 mm/s (feasibility check necessary) |
100 – 500 mm/s (within the safe operating area) Min. 25 mm/s, max 700 mm/s (feasibility check necessary) |
|
| Print rate with ribbon 1200 m long |
Up to 100 prints/min at label length of 50 mm Up to 150 prints/min at label length of 10 mm |
Up to 80 prints/min at label size 50 x 50 mm Up to 115 prints/min at label size 30 x 10 mm |
|
| Check safe operating area for other label lengths | |||
| Maximum print area | 53 x 100 mm (W*L) | 53 x 600 mm (W*L) | |
| Ribbon length |
1200 mtr; on 1” plastic core Roll diameter max. 110 mm |
||
| Ribbon Save | Yes | ||
| Patented Quickribbon X-Loader | Change ribbon roll in less than 1 minute | ||
| Ribbon qualities | Wax-resin; resin | ||
| Print data | Fonts | Windows true type; Arial internal; Various heights and shapes; Unicode and UTF-8 code | |
| Barcodes | 1d, 2d barcodes; Datamatrix; QR codes; Databar; PDF417 | ||
| Logos | BMP; JPG; TIFF; PNG; GIF; PCX formats | ||
| Codes | All kind of date code, serial numbers, production codes, … | ||
| Label creation | Label design software; EIDOS Easycode design software; printer language programming | ||
| Controller/ HMI |
7” full colour capacitive touchscreen Powered via ethernet Incl. intuitive user interface. For status info, print layout WYSIWYG; multilingual, diagnostics, system settings |
||
| Dimensions | 215*133*33 mm (W/H/D) | ||
| Cable length | 1,5 mtr (controller to printer) | ||
| Signal interfaces | 25 D-sub Connector for IO connection to packaging machine | ||
| Data Interfaces printer | Ethernet 10/100; 2x USB 2.0 host RS 232 (9 pin, baudrate 115200) | ||
| Physical data printer | Power supply | Input voltage 85–265; Input frequency 50/60 Hz | |
| Dimensions | 225*178*228 mm (W/H/D) | ||
| Environmental | Operation temp 5° – 40° C; humidity 10 – 60% non condensing | ||
| Options |
Power supply unit for packaging machines’ electrical cabinets Multiple selection of mounting brackets for integration in packaging machines Additional Quickribbon X-Loader Web User Interface (on HMI, PC or mobile device) Bracketry and interface cable for integration with XLS 20x labelers (intermittent) |
||
Related Products
EIDOS XTO

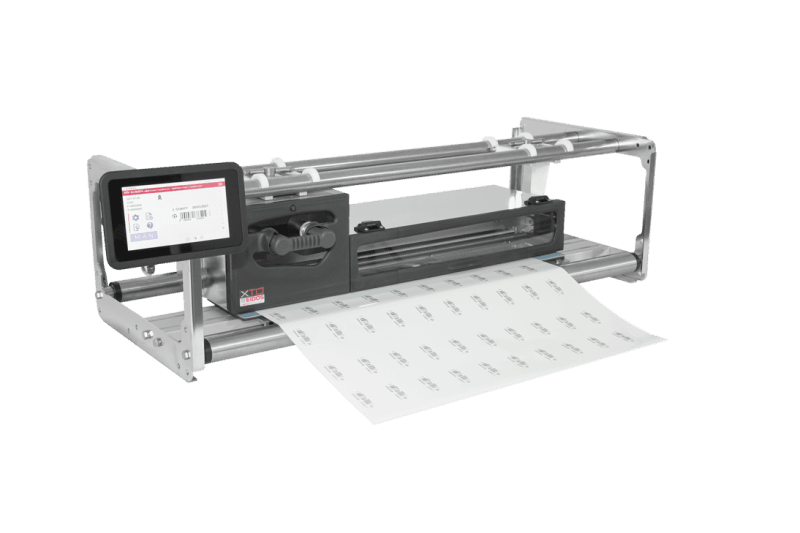

Model XTO 2 IE , CE 20/40/60
Perfect for integration into intermittent packaging systems Best quality overprinting with up to 600 mm print length For all applications in the food, pharmaceutical, personal care, automotive or other industries
EIDOS XTO

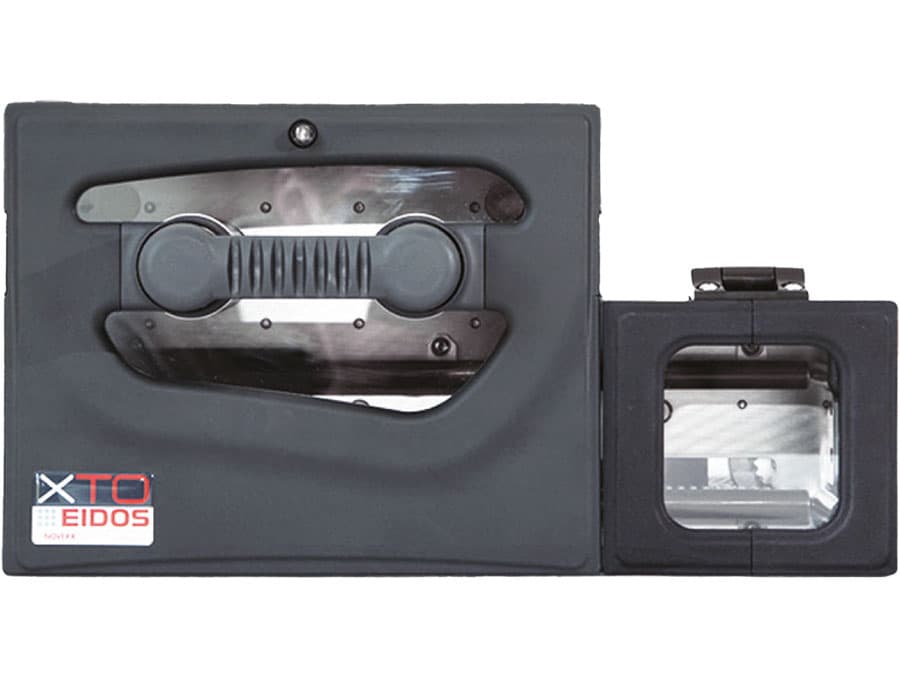

Model XTO XL IE , XL CE
