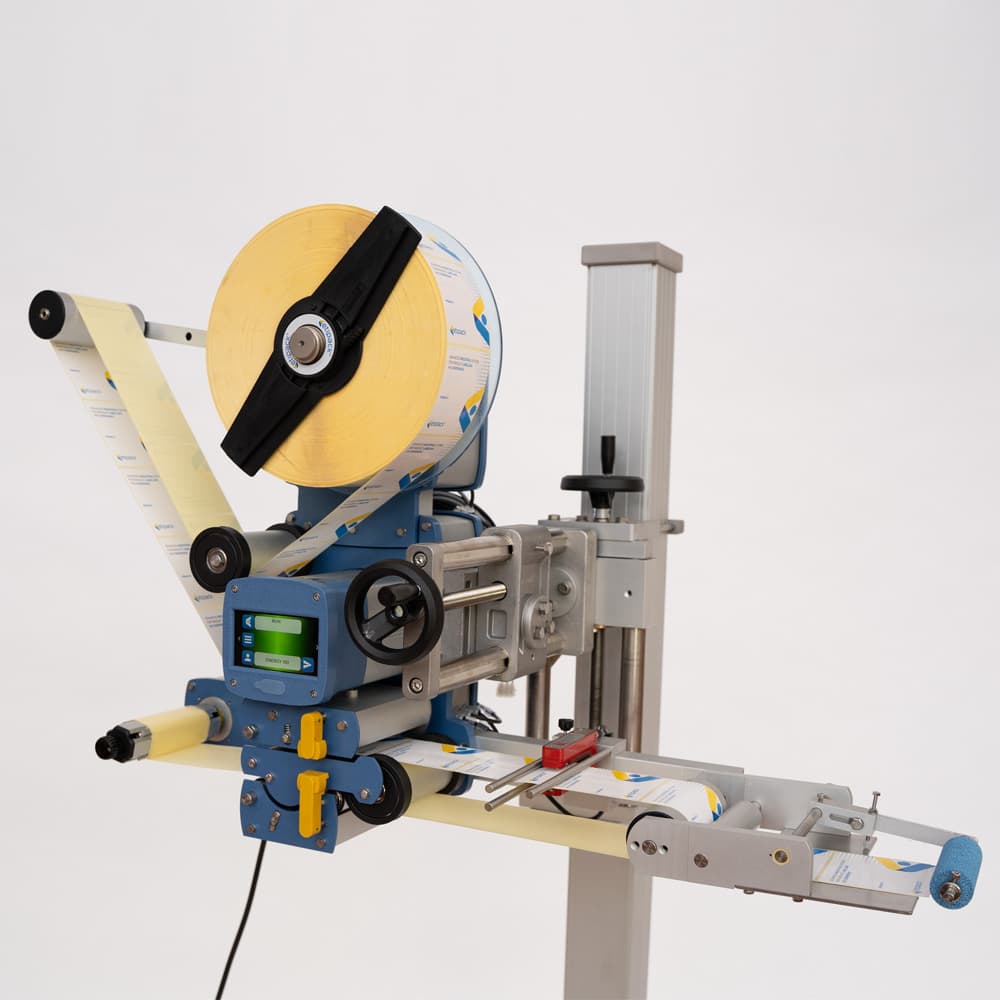

Energy Series
Key Features
- High-quality construction
- Professional grade
- Easy to use
- Reliable performance
| Features | 100 | 200 | 300 |
|---|---|---|---|
| Dispensing speed | ≤ 60 m/min | ≤ 50 m/min | ≤ 20 m/min*1 |
| Dispensing W | 20 – 100 mm | 20 – 200 mm | 20 – 300 mm *2 |
| Outside reel Ø | ≤ 280 mm | ≤ 280 mm | ≤ 280 mm |
| Inside reel Ø | 40 – 75 mm | 40 – 75 mm | 40 – 75 mm |
| Motor | Hybrid stepper motor | Hybrid stepper motor | Hybrid stepper motor |
| Stop Tolerance | ± 0,5 mm | ± 0,5 mm | ± 0,5 mm |
| Size L – W – H | 581x319x722 mm | 611x419x752 mm | 611x578x802 mm |
| Power supply | 115/230 V, 50–60 Hz | 115/230 V, 50–60 Hz | 115/230 V, 50–60 Hz |
| Electrical input | 150 W | 150 W | 150 W |
| Elettrical protection | IP 54 | IP 54 | IP 54 |
| Noise level | 70 dB | 70 dB | 70 db |
| Version | DX – SX | DX – SX | DX-SX |
Related Products
Strong Series
The labelling machine Strong is the entry-level model of the range of label applicators manufactured by Etipack. It is a compact, robust, reliable and price saving label applicator to cover a wide range of industrial labelling needs. The Strong automatic labeller is available in 2 widths, 100 or 200 mm Unwinder with disc brake Belt rewinder Rewinder for plastic supports Membrane keyboard for main functions End of coil control and / or jamming Label step control Pre-alarm end coil
Extreme Series
Extreme is the automatic labelling machine ideal for appli cations that require high frequencies and maximum accu racy. The labelling machine is equipped with a an innovative multitasking electronics that, through encoder, manages multiple functions simultaneously. The new hybrid stepper motor allows optimal control on label distribution and tolerance range close to zero on stop. The touch screen allows changingsettings even when the machine is running.
